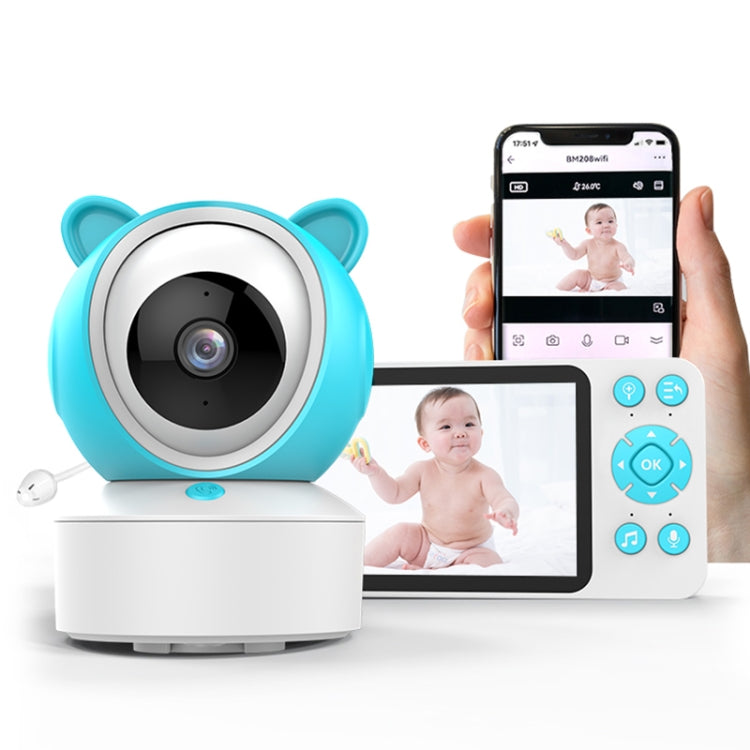

YE9-C1 5 Inch Dual Mode 2.4G + 915M Video Night Vision Baby Monitor Security Camera (EU Plug)

Features:
1. 5.0-inch baby monitor + APP remote monitoring (TUYA APP) + IPC camera
2. Two-way simplex intercom, scream detection, temperature detection, humidity detection, motion detection, video amplification function
3. Lullaby playback, volume control function, feeding reminder function

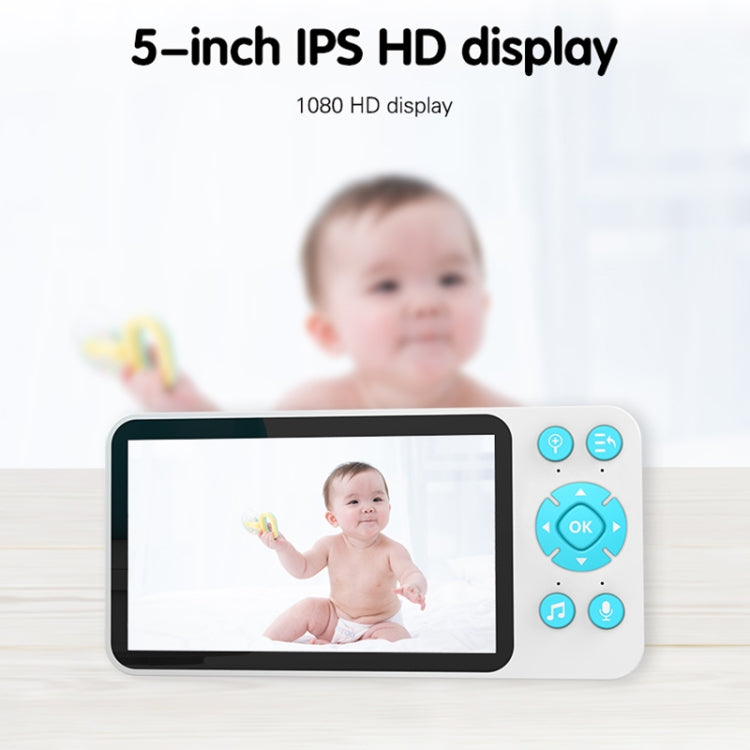

4. 5.0-inch IPS HD screen, screen brightness adjustment, power saving function when turning off the screen, language selection, foldable stand, antenna, PTZ control

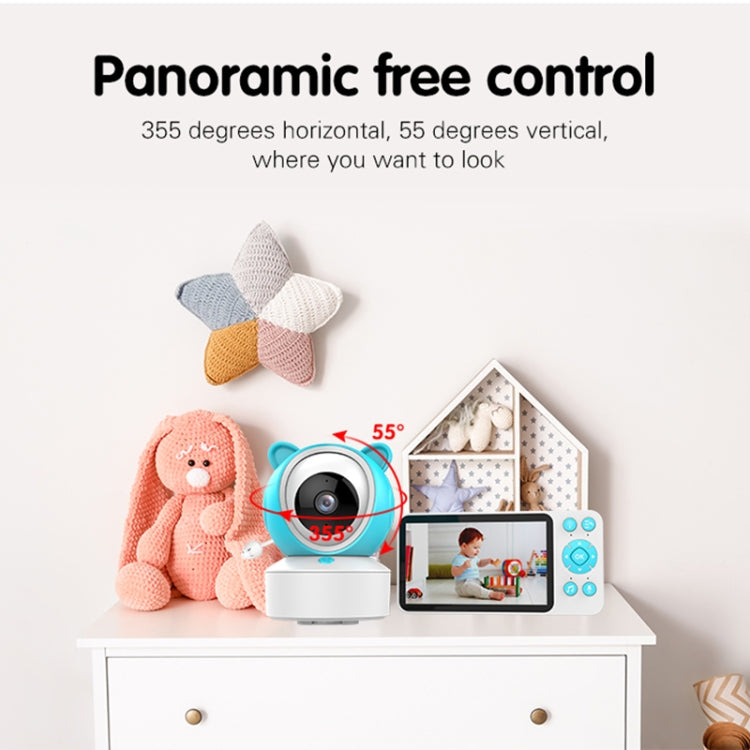

5. 200W high-definition camera, the pan/tilt function rotates 355° left and right/55° up and down, supports TF card video storage, no red light night vision and one-click call function
6. Tuya APP remote video display, lullaby playback, voice intercom and message push
7. The screen has a built-in 3000mAh lithium battery and a TYPE-C power supply/charging interface.
IPC parameters:
1. Main chip: Main controller GK7202 V300
2. Main frequency: 900 MHz
3. Reminder:
- DDR2 memory: 512 Mbit
- SPI memory: 128 Mbit
4. Image sensor: GC2083 1/3 inch
5. Effective pixels: 1080P
6. Illuminance min: 0.5 lux/F2.0 (color), 0.02 lux/F2.0 (black and white)
7. White Balance: Automatically track white balance
8. Microphone: Anti-interference sensitivity -30 dB+/-3 dB
9. Distance: 5 meters
10. Speaker: 8 ohms 1 watt
11. Electronic shutter: 1/4–1/10,000 s
12. Night vision distance: 5 m
13. Detection method: photodiode
14. LED infrared light: 940 nm (no red exposure)
15. Network protocol: TCP/IP, DHCP
16. WiFi Module: 8188FTV/TXW830
17. Supports WLAN standards: IEEE 802.11b/g/n
18. Frequency: Using 2.4GWiFi+RF 750-930 MHz frequency band dual-mode transmission with low power consumption
19. 2.4g transmission range: 30 meters -50 meters (limit distance in open air)
20. 900 MHz transmission distance: 400-500 meters (limit distance outdoors)
21. PTZ Control: Supports app/LCD screen control
22. Night vision mode: IR-CUT
23. Focal length: 3.3 mm
24. Horizontal viewing angle: 110 degrees
25. Aperture: F2.0
26. Infrared night vision lights: 6 pieces, angle 90 degrees, 940 degrees without red light
27. Material: ABS plastic
28. Video resolution: 1920x1080P
29. Frame rate: 50 Hz: 25 frames (1280 x 720 P)
30. Video compression: H.265
31. Audio compression: G.711/16 kbps
32. Working temperature: -30 ~ 65 degrees Celsius
33. Power connector: TYpe-C connector
IPC functions:
1. Power on: Automatically turns on when the device is turned on
2. APP: Tuya APP, Android 5.0, IOS 8.0 or higher
3. Distribution network: QR code

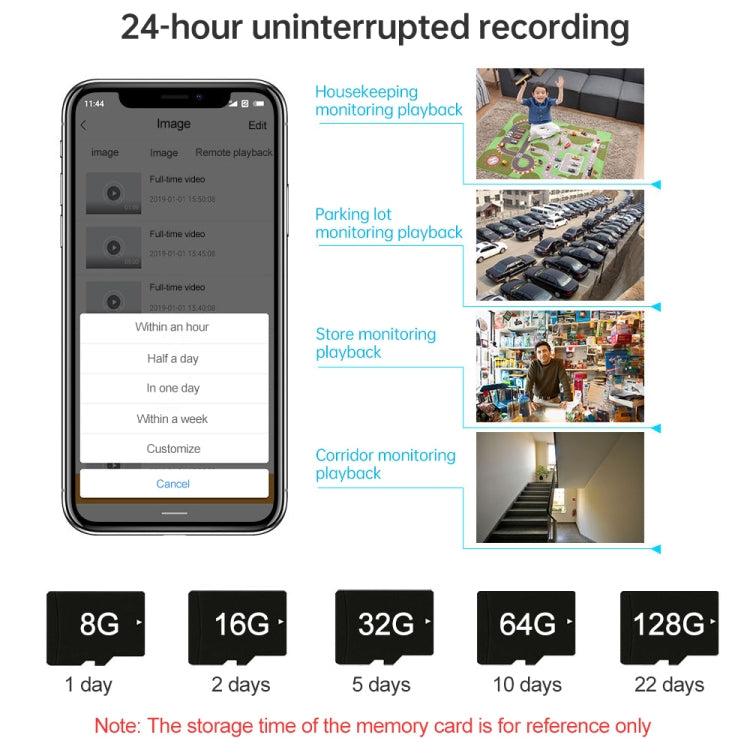

4. Motion detection: Detect push notifications and record videos (install TF card)
5. Playback: You can watch the detection recording video (install TF card)
6. Cloud Messaging: You can view recorded photos with motion detection and scream detection
7. Alarm sensitivity: low/medium/high
8. Supports wine detection, privacy mode, formatted TF card, status display switch, alarm function timing, full screen display, intercom, one-click calls, screenshots and manual video recording
9. Recording time: 15 seconds
10. Number of photos taken in cloud storage: one
11. Infrared night vision function: automatic, off, on
12. Alarm interval: 1 minute, 3 minutes, 5 minutes
13. Lullaby: Supports on/off playback and loop playback
14. Temperature: Temperature unit can be set
LCD parameters:
1. Main chip: Main controller SSD202 (SIGMASTAR)
2. Main frequency: Dual-core 1.2G
3. Reminder:
- DDR3 memory: 1 Gbit
- SPI memory: 128 Mbit
4. Microphone: -38 dB+/-3 dB
5. Screen resolution: 1280 x 720 P
6. Speaker: 16 ohms 1 watt
7. Shooting distance: 5 meters
8. 900 MHz transmission distance: 400-500 meters (limit distance outdoors)
9. Frequency: RF 750–930 MHz frequency band dual-mode transmission
10. Housing material: ABS plastic
12. Size: 5-inch IPS screen
13. Resolution: 1280x720
14. Working temperature: -30–65 degrees Celsius
15. Battery capacity: 3000 mAh
16. Charging port: TYpe-C port
17. Battery life: more than 80% after 300 cycles
LCD functions:

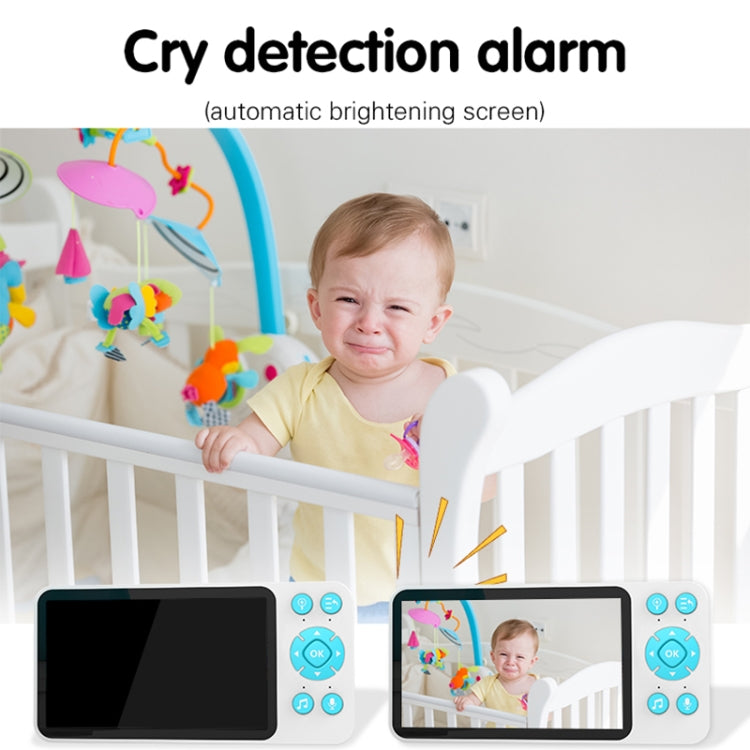

1. Supports temperature detection alarm, humidity detection alarm, cry detection alarm, lullaby playback, intercom, language setting, factory reset and version information display
2. Menu buttons: Up, Down, Left, Right, OK button; Music play button; Intercom button; Power key; Magnification button
3. Electronic amplification: 4x
4. Feeding alarm: adjustable time and set time
5. Display settings: Sleep and screen brightness
6. Time and Date: Date, time and time zone setting
